How to Specify ISO-Profile Cylinders for Washdown

Pneumatic cylinders used in washdown environments face repeated exposure to water, cleaning chemicals, detergents, temperature changes and high-pressure spray.

‍

These conditions can accelerate corrosion, damage seals and allow contamination to collect around the cylinder body, piston rod and mounting points. Selecting a cylinder based only on its dimensions can therefore lead to premature failure, increased maintenance and unplanned downtime.

‍

This guide outlines the main factors distributors, OEM engineers and plant automation teams should consider when specifying ISO-profile pneumatic cylinders for washdown applications.

‍

Why Washdown Environments Require Careful Selection

‍

Washdown conditions vary considerably. Some machinery may receive an occasional low-pressure rinse, while other equipment is cleaned frequently using heated water, aggressive detergents or high-pressure jets.

‍

Common cylinder durability issues include:

‍

• Corrosion of aluminium profiles, fasteners, piston rods and mountings

• Damage to the piston rod, rod seal or scraper

• Seal degradation caused by chemicals or temperature changes

• Water and cleaning residues collecting in grooves, threads and recesses

• Loss of lubrication from exposed mechanical components

The more frequent and aggressive the cleaning process, the greater the need for corrosion-resistant materials and suitable sealing arrangements.

‍

Start with the Washdown Process

‍

Before specifying a cylinder, establish:

• How frequently the machine is cleaned

• Whether the cylinder is directly exposed to spray

• Water pressure, temperature and spray direction

• Cleaning chemicals and concentrations

• Contact time and frequency of exposure

• Normal operating temperatures

• Food-contact or hygienic design requirements

‍

The term “washdown environment” can describe anything from occasional wiping to daily high-pressure chemical cleaning. These conditions should not be treated as equivalent.

‍

Chemical compatibility with the cylinder’s seals, coatings, metals and lubricants should always be confirmed.

‍

Choose the Correct Cylinder Construction

‍

The appropriate construction depends on the severity of the environment and the consequences of component failure.

‍

1. Standard aluminium-profile cylinders

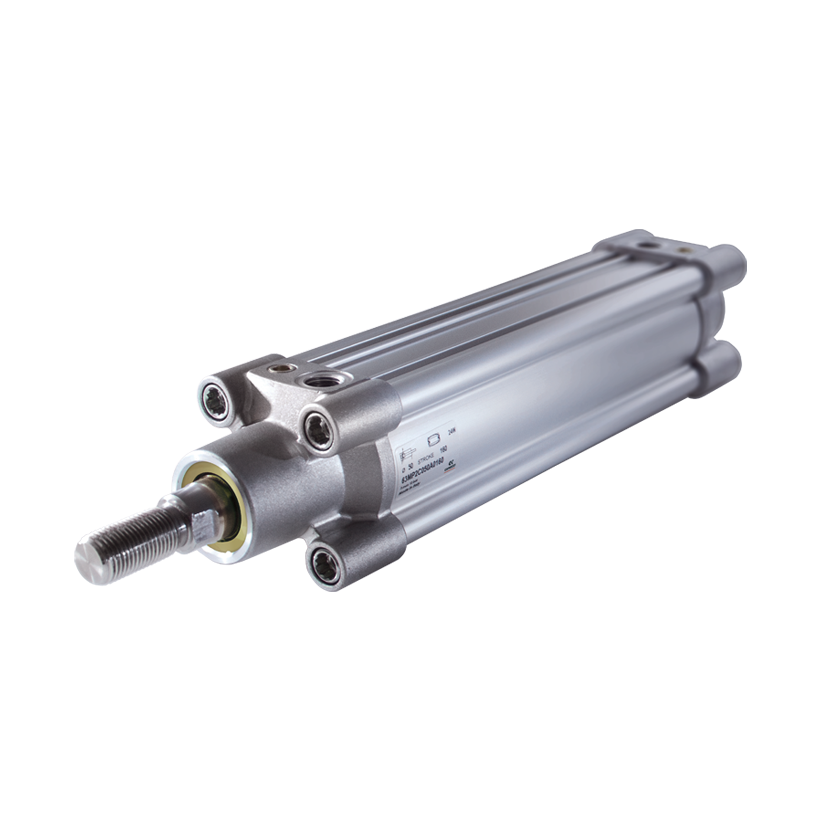

A standard aluminium-profile ISO cylinder may be suitable for light, occasional or indirect exposure, particularly where the cylinder is shielded from the main wash zone.

‍

However, standard aluminium, plated fasteners and conventional piston rods may not provide sufficient long-term resistance for frequent or aggressive washdown.

‍

2. Corrosion-resistant ISO cylinders

For moderately demanding environments, corrosion-resistant options may provide a suitable balance between performance and cost.

‍

Available features may include:

• Stainless-steel piston rods and rod nuts

• Corrosion-resistant fasteners

• Treated end-cap screws

• Protective body coatings

• Alternative rod scrapers

• Protective bellows

‍

Camozzi Series 63 ISO 15552 cylinders are available in versions developed for demanding environments, including corrosion-resistant, hydrolytic, food and beverage, dirty and dusty, and polyurethane-coated configurations.

‍

The cylinder should be selected against the actual chemical and mechanical exposure rather than relying on a general description such as “corrosion-resistant”.

‍

3. Stainless-steel cylinders

For intensive washdown or highly corrosive environments, a stainless-steel cylinder may be more appropriate.

‍

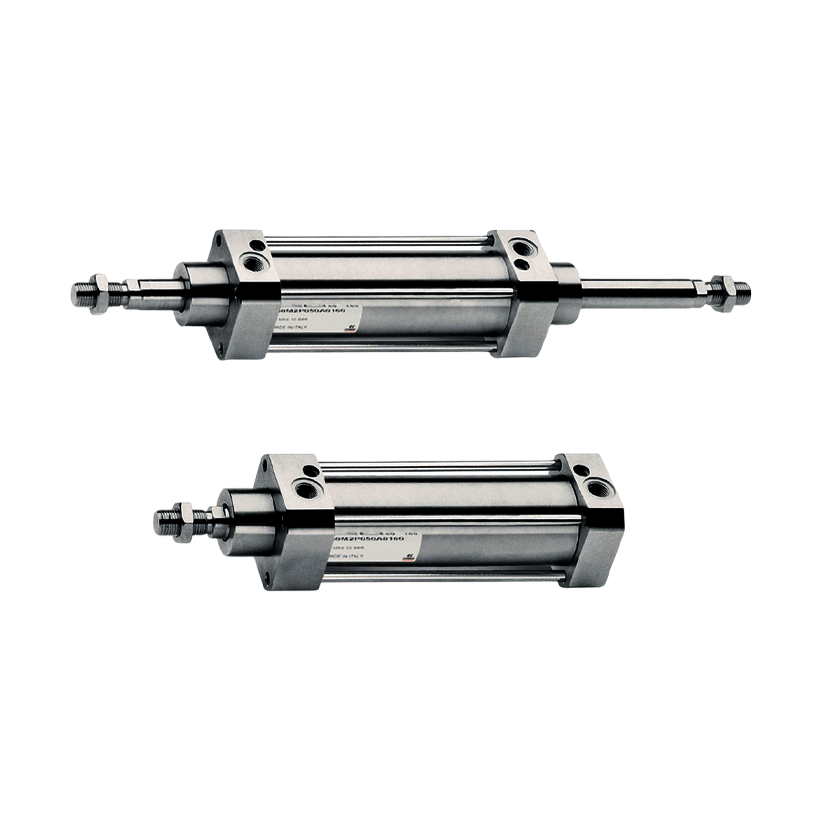

Camozzi Series 90 cylinders comply with ISO 15552 and feature AISI 316 stainless-steel construction. They are designed for applications requiring high corrosion resistance, including food, marine and offshore environments.

‍

Engineers should still confirm:

• Stainless-steel grade

• Piston rod and fastener materials

• Seal compatibility

• Mounting accessory materials

• Resistance to the cleaning chemicals used

‍

A stainless-steel cylinder fitted with standard plated-steel brackets may still leave vulnerable points in the installation.

‍

Assess the Complete Assembly

‍

The service life of the cylinder can be limited by its least resistant component.

‍

The cylinder body, piston rod, fasteners, mountings, sensors, fittings and accessories should therefore be assessed together.

‍

A stainless-steel piston rod, for example, will not prevent failures caused by corroding end-cap screws or mounting hardware.

Consider the Piston Rod and Seals

‍

The piston rod is one of the most exposed parts of the cylinder. Corrosion, scratching or contamination can damage the rod seal and allow contaminants to enter the cylinder.

‍

Consider:

• Rod material and surface finish

• Exposure to direct spray

• Risk of impact or scratching

• Rod seal and scraper type

• Whether additional protection is required

• Cylinder orientation and drainage

‍

Protective bellows may help in heavily contaminated environments, although their folds can create additional areas that require cleaning.

‍

Seal selection must also take account of chemical concentration, wash temperature, contact time, process fluids and whether lubricated or non-lubricated compressed air is used.

‍

A seal material suitable for water may not tolerate alkaline cleaners, acids, disinfectants or high temperatures.

‍

Protect Sensors and Connections

‍

Sensors, cables, connectors, tubing and fittings must be suitable for the same washdown conditions as the cylinder.

‍

Check the environmental and chemical resistance of:

• Magnetic cylinder sensors

• Sensor cables and connectors

• Cable glands and valve plugs

• Pneumatic tubing and fittings

‍

Unused profile grooves should be covered where practical to reduce water and debris collection. Pneumatic ports and tubing should also be positioned to avoid water traps and allow effective cleaning.

‍

Common Specification Mistakes

‍

Typical mistakes include:

• Assuming all ISO cylinders provide the same environmental resistance

• Specifying the cylinder body but overlooking accessories and mountings

• Treating “stainless steel” as a complete material specification

• Ignoring detergent chemistry and wash temperature

• Allowing the cylinder to guide an unsupported load

• Installing the cylinder in a position that traps water

• Replacing failed cylinders without investigating the underlying cause

‍

ISO compliance confirms dimensional compatibility. It does not guarantee identical materials, sealing systems or washdown performance.

‍

‍

ISO-Profile Cylinder Selection Checklist

‍

Before ordering an ISO-profile cylinder for washdown, confirm:

1. Required ISO standard, bore, stroke and force

2. Washdown frequency, pressure and temperature

3. Cleaning chemicals and concentrations

4. Cylinder, piston rod and fastener materials

5. Seal and scraper compatibility

6. Mounting alignment and side-loading risk

7. Suitability of sensors, fittings and accessories

8. Drainage and potential water traps

9. Compressed-air quality

10. Inspection and maintenance access

‍

‍

Technical Support when specifying cylinders for washdown applications

‍

Specifying ISO-profile pneumatic cylinders for washdown environments requires more than selecting the correct bore and stroke.

‍

Cylinder construction, materials, seals, cleaning chemicals, mountings and accessories must all be considered together.

‍

Camozzi Automation UK supports pneumatic component distributors, OEM engineers and plant automation teams with ISO-profile cylinders, stainless-steel cylinders, mounting accessories, sensors, fittings and air-preparation equipment.

‍

Contact Camozzi Automation UK to discuss your application or request technical support with pneumatic cylinder selection.
