Why Are Pneumatic Systems Used in Theme Park Engineering?
Pneumatic systems use compressed air to create and control movement. Their compact design, flexible installation and suitability for repeated actuation make them useful across many ride and attraction mechanisms.
Depending on the application, pneumatic systems can offer:
- Fast and repeatable movement
- Compact component installation
- Straightforward integration into modular systems
- Clean operation without hydraulic fluid
- Practical maintenance and component replacement
- A wide choice of cylinders, valves and control equipment
The correct technology depends on the required force, movement, operating environment and wider control system design.
Ride restraint, braking and access applications are safety critical. System design and component selection must be assessed by appropriately qualified engineers against the requirements of the individual ride.

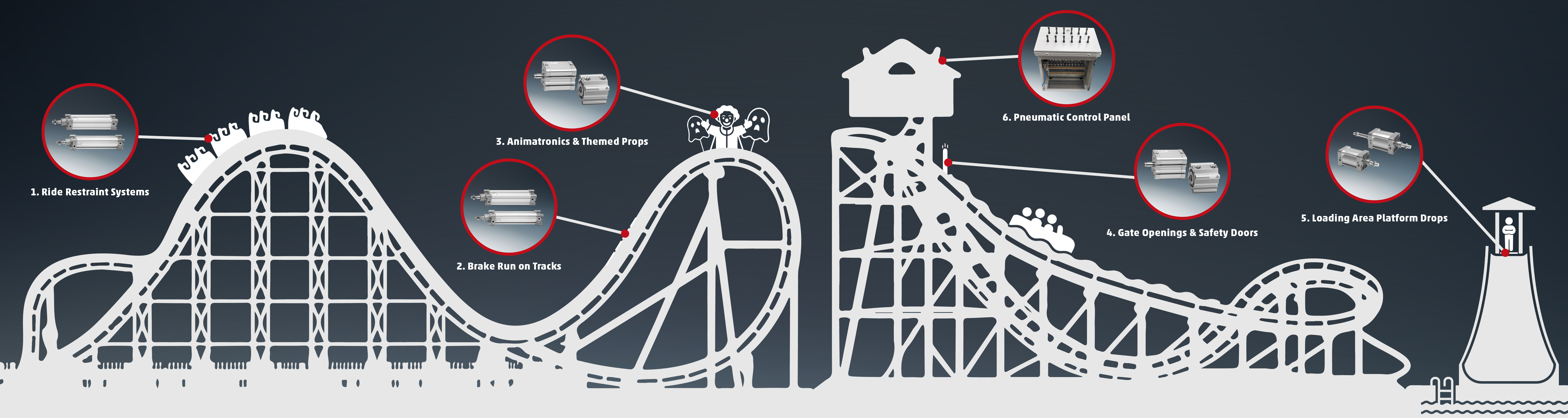

Where Are Camozzi Pneumatic Components Used in Theme Parks?

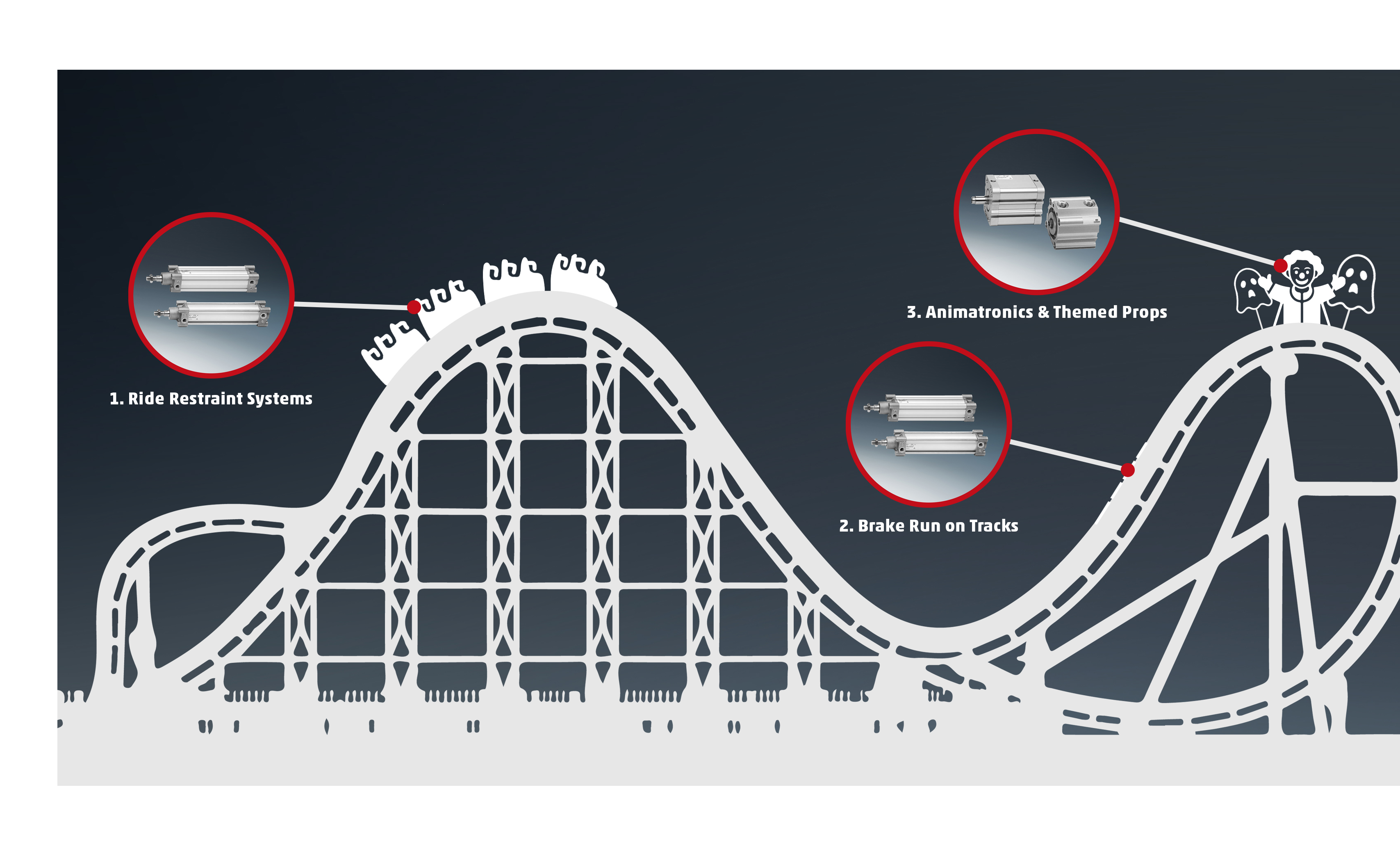

Pneumatic Actuation for Ride Restraint Mechanisms
Purpose: depending on the ride design, pneumatic cylinders may be used as part of the mechanism that operates a passenger restraint or harness system.
Camozzi Products: standard ISO pneumatic cylinders, including Series 61 and Series 63, where suitable for the application.
Application Benefit: compact cylinder designs can provide controlled, repeatable actuation. Scraper options may also help protect the cylinder in demanding or contaminated environments.
Pneumatic Cylinders for Brake Run Actuation
Purpose: pneumatic cylinders can actuate braking mechanisms positioned at the end of a ride or between different track sections.
Camozzi Products: standard ISO pneumatic cylinders, including Series 61 and Series 63, where suitable for the application.
Application Benefit: pneumatic actuation can support modular brake zone arrangements and repeatable movement across multiple sections of track.
Pneumatic Movement for Animatronics and Themed Effects
Purpose: pneumatic components can create movements and timed effects for animated characters, themed props, air bursts and 4D cinema installations.
Camozzi Products: single acting and compact cylinders, including Series 31, Series 32 and Series QP, depending on the movement required.
Application Benefit: single acting cylinders use a spring return, making them suitable for simple repetitive or timed movements where appropriate.

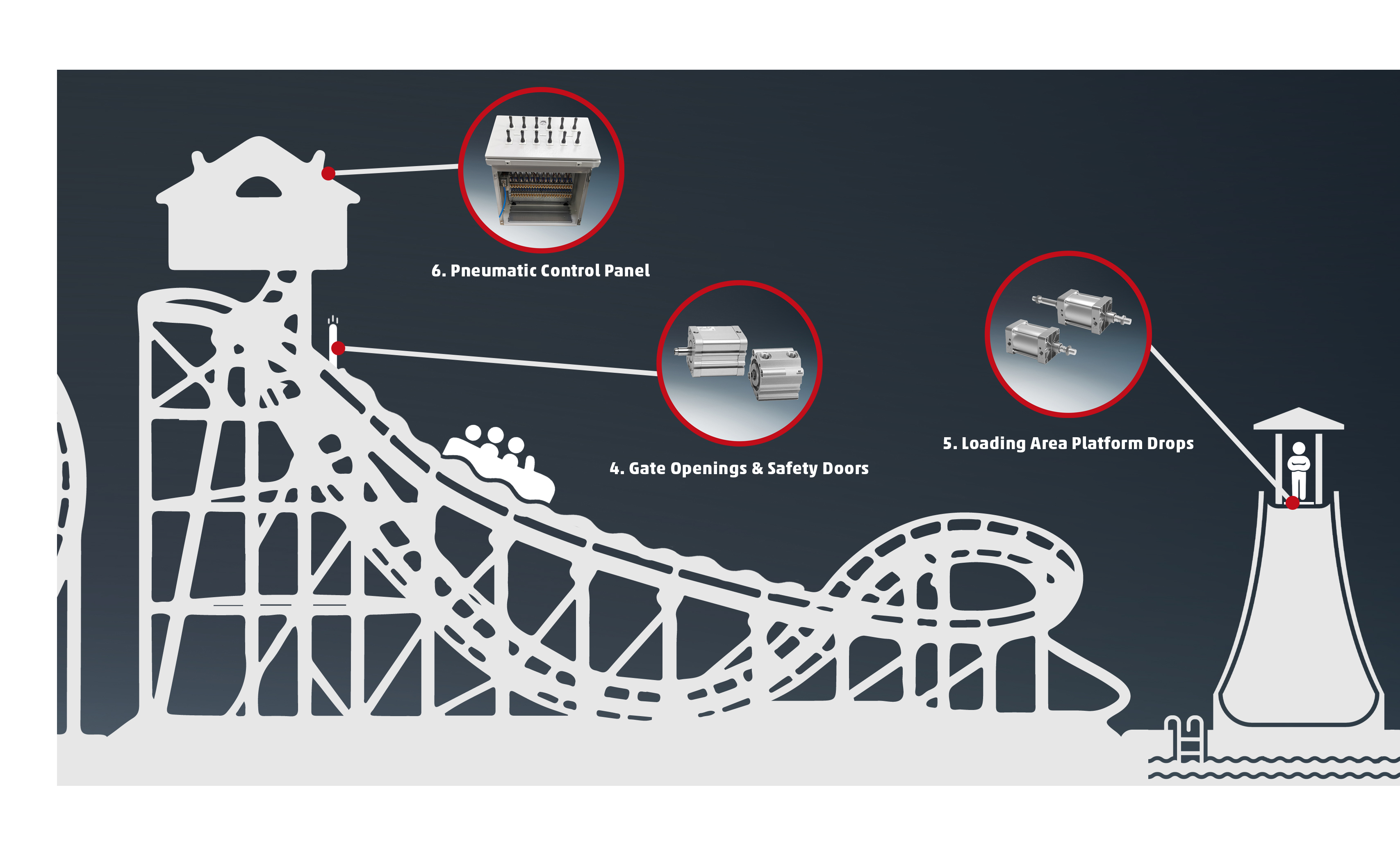

Pneumatic Actuation for Access Gates and Ride Barriers
Purpose: pneumatic cylinders can operate access gates, barriers and drop away mechanisms around ride loading areas.
Camozzi Products: compact and standard pneumatic cylinders, including Series 31, Series 32 and Series QP, depending on stroke, force and installation space.
Application Benefit: compact cylinders can provide practical actuation where mounting space is limited.
Large Bore Cylinders for Loading Platforms and Water Rides
Purpose: larger pneumatic cylinders can support loading platforms, movable floor sections and other higher force mechanisms used around water rides and attraction areas.
Camozzi Products: Series 40 large bore pneumatic cylinders, where suitable for the force and stroke requirements.
Application Benefit: pneumatic operation avoids the need for hydraulic fluid and a hydraulic power pack, although suitability depends on the required load and system design.
Bespoke Pneumatic Control Panel for a Four Lane Log Flume
Camozzi Automation UK supplied a custom pneumatic control system for a four lane log flume.
The system included:
- Valve controlled ISO pneumatic cylinders
- A modular control arrangement developed around the ride requirements
The project demonstrates how pneumatic components and a bespoke pneumatic control panel can be brought together to support a specialist theme park application.
Pneumatics or Hydraulics: Which Is Suitable for a Theme Park Application?
Pneumatic and hydraulic systems each have advantages and the correct option depends on the application.
Pneumatic systems may be suitable for:
- Lower or moderate force requirements
- Fast, repetitive movement
- Compact animatronics and themed effects
- Modular control systems
- Applications where avoiding hydraulic fluid is beneficial
Hydraulic systems may be more suitable where particularly high forces, rigid positioning or lower compressibility are required.
Many attractions use a combination of technologies, with pneumatic components supporting individual mechanisms even where the main ride system uses another form of actuation.
UK Built Pneumatic Control Panels for Theme Park Applications

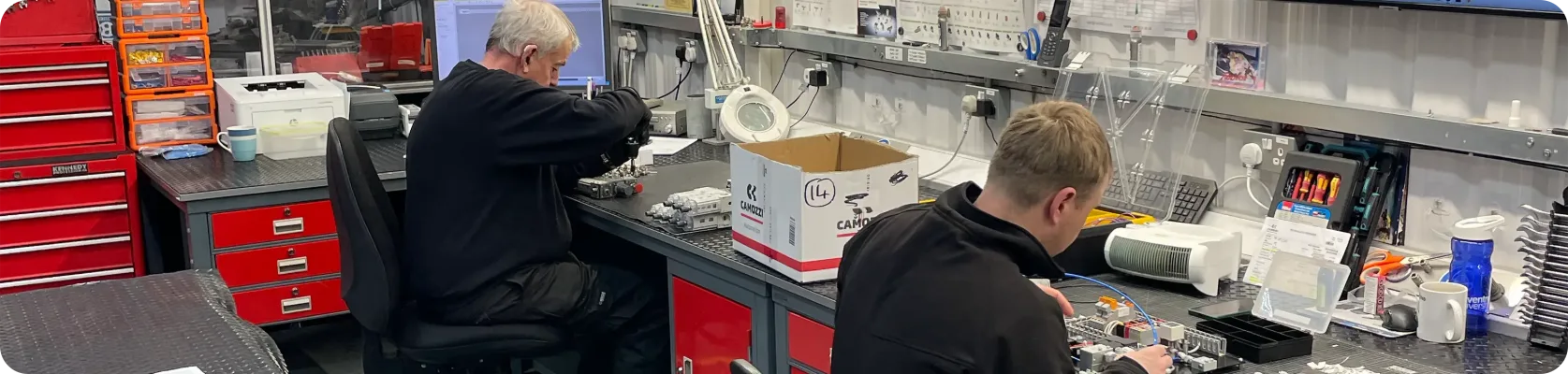

The Camozzi UK Automation Centre designs and builds custom pneumatic and electro-pneumatic control panels for specialist industrial and entertainment applications.
Our UK team can support projects with:
- Pneumatic circuit development
- Component selection
- 2D schematics and 3D CAD modelling
- In-house panel assembly
- Leak and functionality testing
- Agreed labelling and documentation
- Technical support after dispatch
Each panel is developed around the required movements, controls, installation space and operating environment.
Why Choose Camozzi UK for Theme Park Pneumatics?
✔ Experience supporting real world theme park applications
✔ Bespoke pneumatic and electro-pneumatic control panel builds
✔ Camozzi cylinders, valves and flow control components
✔ UK based assembly, testing and technical support
From ride mechanisms to animatronics, Camozzi UK can help develop a practical pneumatic solution around the application requirements.
